Summarization:

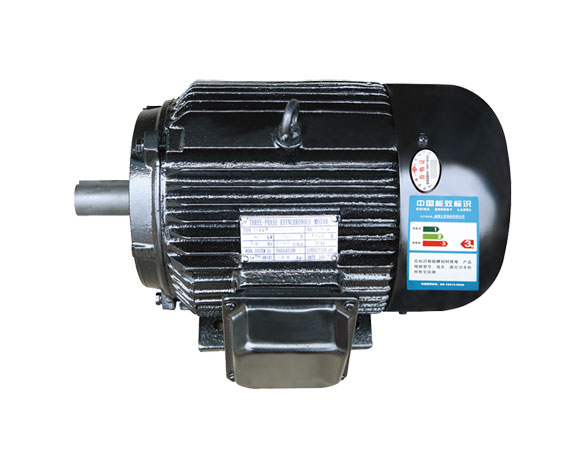

Y series motor is full-close rat-cage asynchronous motor self-cooled by fan, the series is designed uniformly. The series motor is of the characteristic of high efficiency, saving the power, large starting torque, small vibrancy, low yawp, great reliability. The power grade and installing dimension respond to the standard of IEC.
As ordinary-purpose motor, the series is used to drive various engine equipment without especial for performance.

Working condition:
The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40℃.
Rated Volt：380V
Rated Frequency：50Hz
Working System：S1
Protection Grade：IP44
Insulation Grade：B
Cooling Type：IC 411
Wiring：Y(the output is 3KW or below), others are △.

Technical data

Type	Rated power		Rated current (V)	Rated speed (r/min)	Efficient (%)	Power factor (cos￠)	Locked current/Rated current	Locked-rotor torque/Rated torque	Maximal torque/Rated torque	Yawp dB(A)	Weight(kg)
	(KW)	(HP)
Synchronous speed 3000r/min 2pole
Y80M1-2	0.75	1	1.8	2825	75	0.84	6.5	2.2	2.3	71	16
Y80M2-2	1.1	1.5	2.5	2825	77	0.86	7.0	2.2	2.3	71	17
Y90S-2	1.5	2	3.4	2840	78	0.85	7.0	2.2	2.3	75	22
Y90L-2	2.2	3	4.8	2840	80.5	0.86	7.0	2.2	2.3	75	25
Y100L-2	3	4	6.4	2880	82	0.87	7.0	2.2	2.3	79	33
Y112M-2	4	5.5	8.2	2890	85.5	0.87	7.0	2.2	2.3	79	45
Y132S1-2	5.5	7.5	11.1	2900	85.5	0.88	7.0	2.0	2.3	83	64
Y132S2-2	7.5	10	15	2900	86.2	0.88	7.0	2.0	2.3	83	70
Y160M1-2	11	15	21.8	2930	87.2	0.88	7.0	2.0	2.3	87	117
Y160M2-2	15	20	29.4	2930	88.2	0.88	7.0	2.0	2.3	87	125
Y160L-2	18.5	25	35.5	2930	89	0.89	7.0	2.0	2.2	87	147
Y180M-2	22	30	42.2	2940	89	0.89	7.0	2.0	2.2	92	180
Y200L1-2	30	40	56.9	2950	90	0.89	7.0	2.0	2.2	95	240
Y200L2-2	37	50	69.8	2950	90.5	0.89	7.0	2.0	2.2	95	255
Y225M-2	45	60	83.9	2970	91.5	0.89	7.0	2.0	2.2	97	309
Synchronous speed 1500r/min 4pole
Y80M1-4	0.55	0.75	1.5	1390	73	0.76	6.0	2.4	2.3	67	17
Y80M2-4	0.75	1	2	1390	74.5	0.76	6.0	2.3	2.3	67	18
Y90S-4	1.1	1.5	2.8	1400	78	0.78	6.5	2.3	2.3	67	22
Y90L-4	1.5	2	3.7	1400	79	0.79	6.5	2.3	2.3	67	27
Y100L1-4	2.2	3	5	1420	81	0.82	7.0	2.2	2.3	70	34
Y100L2-4	3	4	6.8	1420	82.5	0.81	7.0	2.2	2.3	70	38
Y112M-4	4	5.5	8.8	1440	84.5	0.82	7.0	2.2	2.3	74	43
Y132S-4	5.5	7.5	11.6	1440	85.5	0.84	7.0	2.2	2.3	78	68
Y132M-4	7.5	10	15.4	1440	87	0.85	7.0	2.2	2.3	78	81
Y160M-4	11	15	22.6	1460	88	0.84	7.0	2.2	2.3	82	123
Y160L-4	15	20	30.3	1460	88.5	0.85	7.0	2.2	2.3	82	144
Y180M-4	18.5	25	35.9	1470	91	0.86	7.0	2.0	2.2	82	182
Y180L-4	22	30	42.5	1470	91.5	0.86	7.0	2.0	2.2	82	190
Y200L-4	30	40	56.8	1470	92.2	0.87	7.0	2.0	2.2	84	270
Y225S-4	37	50	70.4	1480	91.8	0.87	7.0	1.9	2.2	84	284
Y225M-4	45	60	84.2	1480	92.3	0.88	7.0	1.9	2.2	84	320
Synchronous speed 1000r/min 6pole
Y90S-6	0.75	1	2.3	910	72.5	0.70	5.5	2.0	2.2	65	23
Y90L-6	1.1	1.5	3.2	910	73.5	0.72	5.5	2.0	2.2	66	25
Y100L-6	1.5	2	4	940	77.5	0.74	6.0	2.0	2.2	67	33
Y112M-6	2.2	3	5.6	940	80.5	0.74	6.0	2.0	2.2	67	45
Y132S-6	3	4	7.2	960	83	0.76	6.5	2.0	2.2	71	63
Y132M1-6	4	5.5	9.4	960	84	0.77	6.5	2.0	2.2	71	73
Y132M2-6	5.5	7.5	12.6	960	85.3	0.78	6.5	2.0	2.2	71	84
Y160M-6	7.5	10	17	970	86	0.78	6.5	2.0	2.0	75	119
Y160L-6	11	15	24.6	970	87	0.78	6.5	2.0	2.0	75	147
Y180L-6	15	20	31.4	970	89.5	0.81	6.5	1.8	2.0	78	195
Y200L1-6	18.5	25	37.7	970	89.8	0.83	6.5	1.8	2.0	78	220
Y200L2-6	22	30	44.6	970	90.2	0.83	6.5	1.8	2.0	78	250
Y225M-6	30	40	59.4	980	90.2	0.85	6.5	1.7	2.0	81	292
Synchronous speed 750r/min 8pole
Y132S-5	2.2	3	5.8	710	80.5	0.71	5.5	2.0	2.0	66	63
Y132M-8	3	4	7.7	710	82	0.72	5.5	2.0	2.0	66	79
Y160M1-8	4	5.5	9.9	720	84	0.73	6.0	2.0	2.0	69	118
Y160M2-8	5.5	7.5	13.3	720	85	0.74	6.0	2.0	2.0	69	119
Y160L-8	7.5	10	17.7	720	86	0.75	5.5	2.0	2.0	72	145
Y180L-8	11	15	24.8	730	87.5	0.77	6.0	1.7	2.0	72	184
Y200L-8	15	20	34.1	730	88	0.76	6.0	1.8	2.0	75	250
Y225S-8	18.5	25	41.3	730	89.5	0.76	6.0	1.7	2.0	75	266
Y225M-8	22	30	47.6	730	90	0.78	6.0	1.8	2.0	75	292
